In the trade since 1982
Bashir Ahmed, father of our Managing Director, worked in the glass and aluminium trade for over forty years. In 2025 that experience became Ahmed Facade Technologies Limited.
Aluminium, glass and façade fabrication in DhakaBuilt to the millimetre.
Aluminium and glass systems for buildings in Dhaka — measured on site, cut from a drawing and billed on what was actually built.
Free site measurement in Dhaka · One-year warranty on installation · Replies written by hand, Saturday to Thursday, 9 am to 7 pm
1982
Family trade in aluminium and glass, Mohammadpur
from ৳650
per sft, sliding window — supply and installation in Dhaka, VAT excluded
Top Dealer
Our proprietor, KAI-Altech Group
10 – 15 days
ordinary jobs, from measurement to handover
Two ways to work with us
Tell us which one you are.
A developer needs a finished opening. A fabricator needs the profile, the glass and the hardware. We do both, and they are not the same conversation.
Developers · Architects · Homeowners
I need a finished job
Measured, fabricated and installed by our own fitters, handed over complete.
- Free site measurement in Dhaka
- Written quotation with the rate per square foot — from a floor plan or window schedule, a per-opening schedule before the site visit
- Drawing and cutting list shared before fabrication
- One-year service warranty on installation, from handover
- Mushak-6.3 challan on every taxable supply
See systems and starting rates
Fabricators · Workshops · Traders
I need materials
Aluminium profile, architectural glass and hardware from our own stock and direct imports.
- KAI, Altech, EDF, Alfa, Max and Panda profile, by the bar
- Glass 3.5 to 12 mm, cut to size with edge work
- Rollers, locks, handles, floor springs, patch fittings
- Free material calculator — cutting list, bars, glass, hardware
Open the trade counter
01
Send the sizes
WhatsApp, a call, or the quick quote below. You get an indicative rate per square foot the same day.
02
We measure and quote
Free site measurement in Dhaka. The written quotation comes with the measurement sheet and the cutting list.
03
We fabricate, install, bill on actuals
10 to 15 days for ordinary jobs. The final bill follows site measurement, with a Mushak-6.3 challan.
What we build
Systems we fabricate and install.
Starting rates are for supply and installation, per square foot, VAT excluded, from our published 2026 rate schedule. The itemised quotation follows site measurement. Full rate card, printable Thai glass window price guide
Commercial

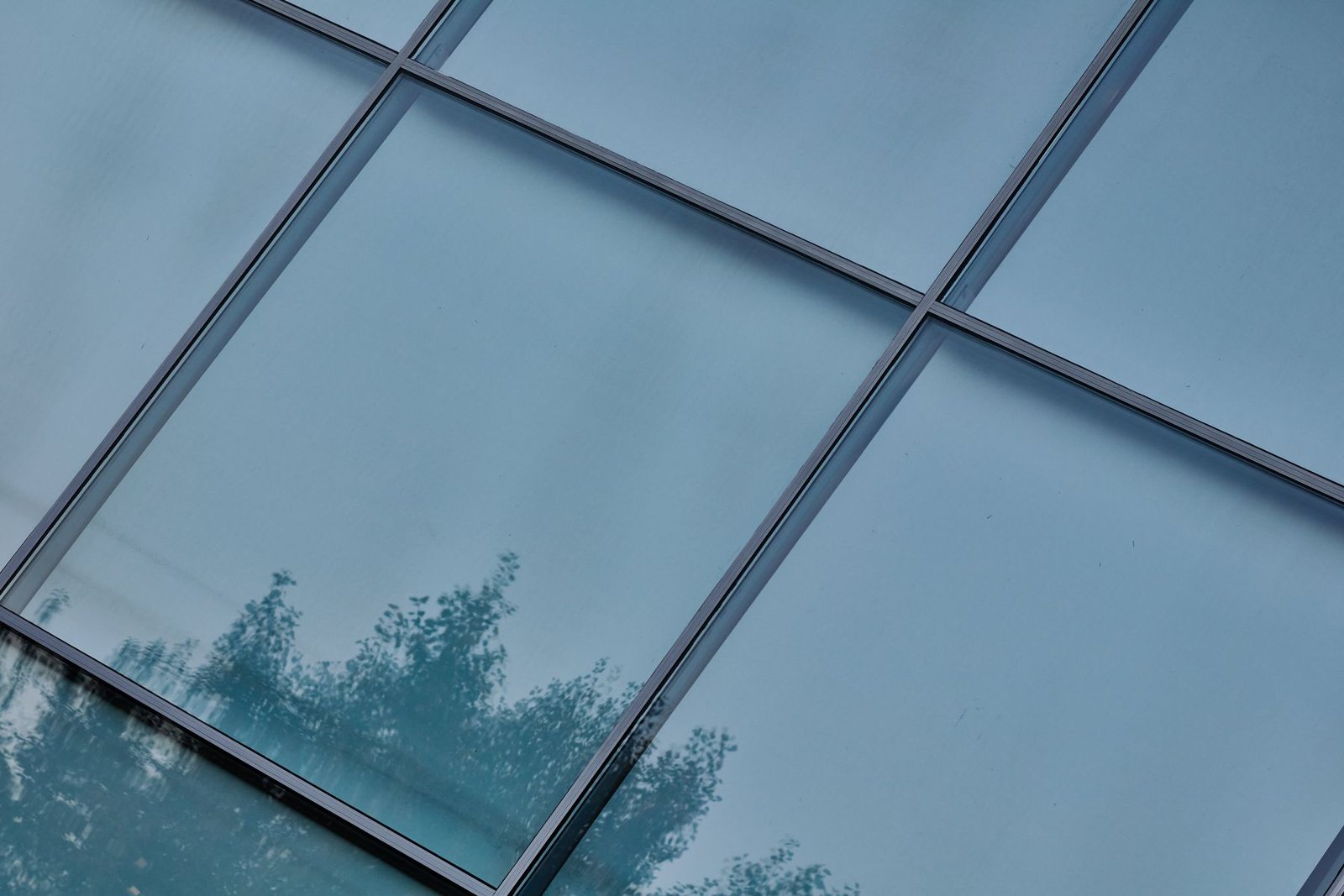

Façade & curtain wall
Stick and unitised curtain wall, structural glazing, ACP cladding and aluminium louvers, engineered to the architect's drawing with profile and hardware sourced direct from China.
Send a drawingHow we work with architects

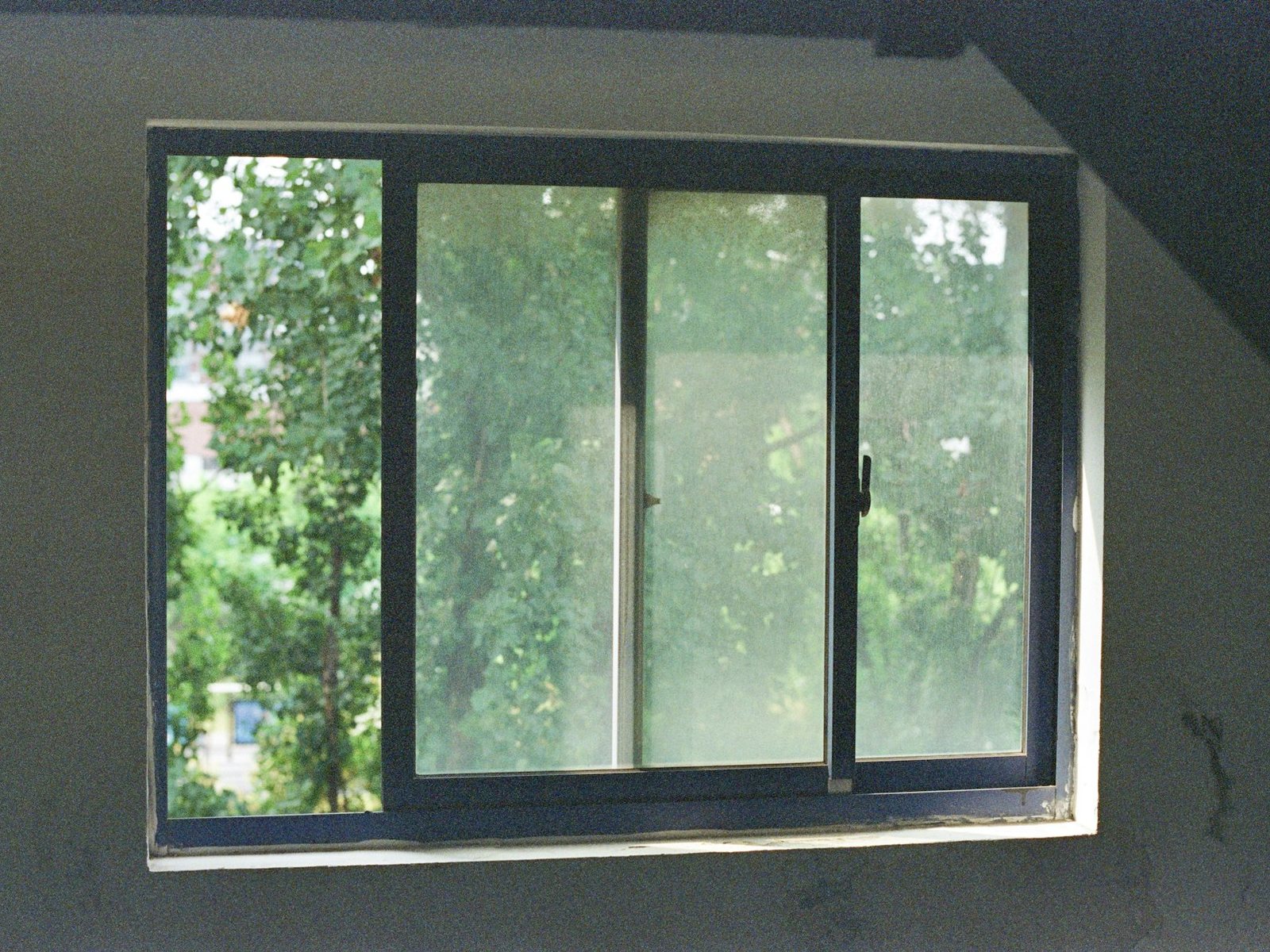

Sliding windows (Thai glass)
Two-track sliding in General and Euro model with an integral mosquito-net track. Sections 1.1 to 1.5 mm; 5 mm clear, tinted or reflective glass.
General model from ৳650/sft
Euro model from ৳1,055 · double glazed from ৳1,290

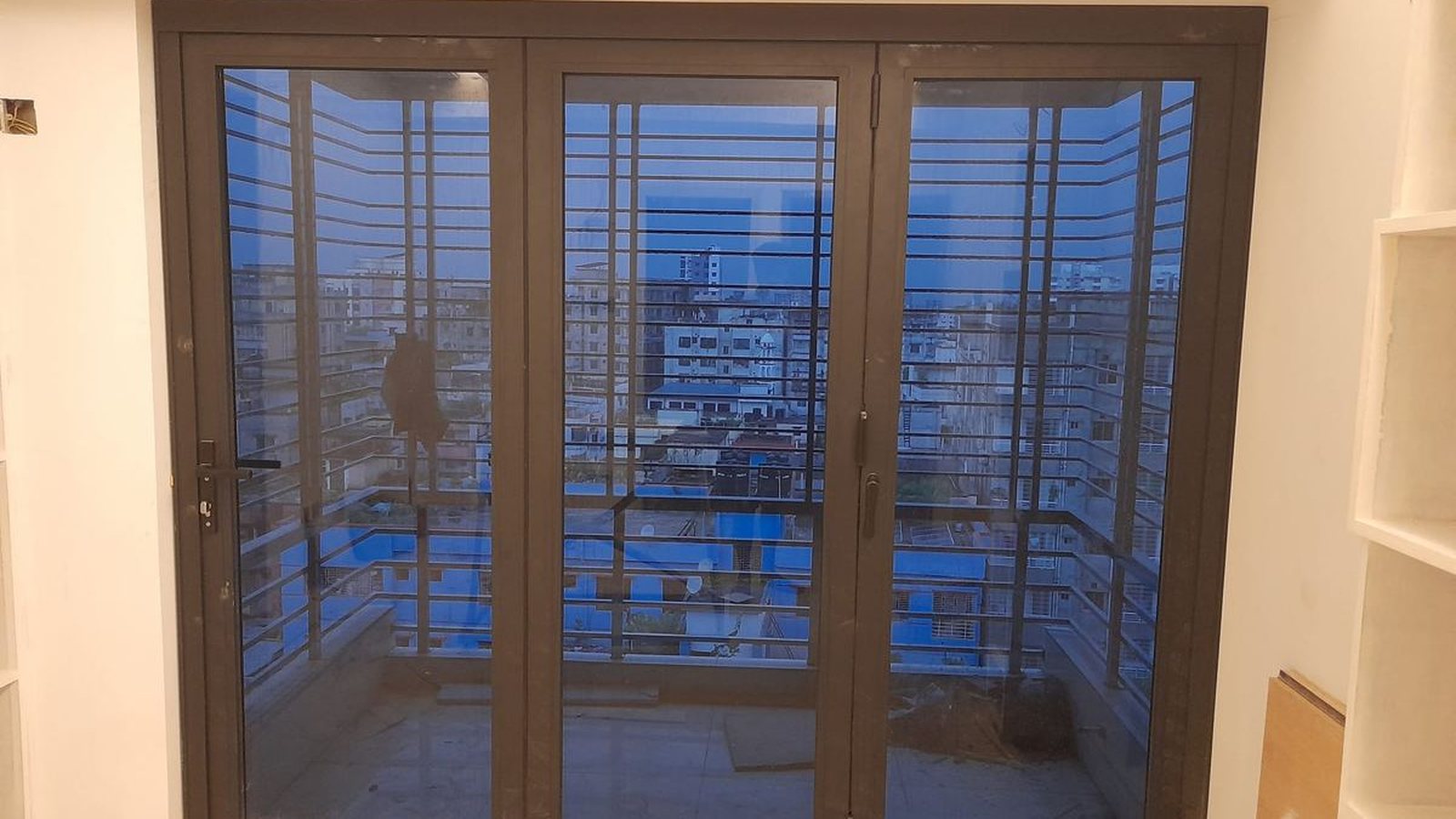

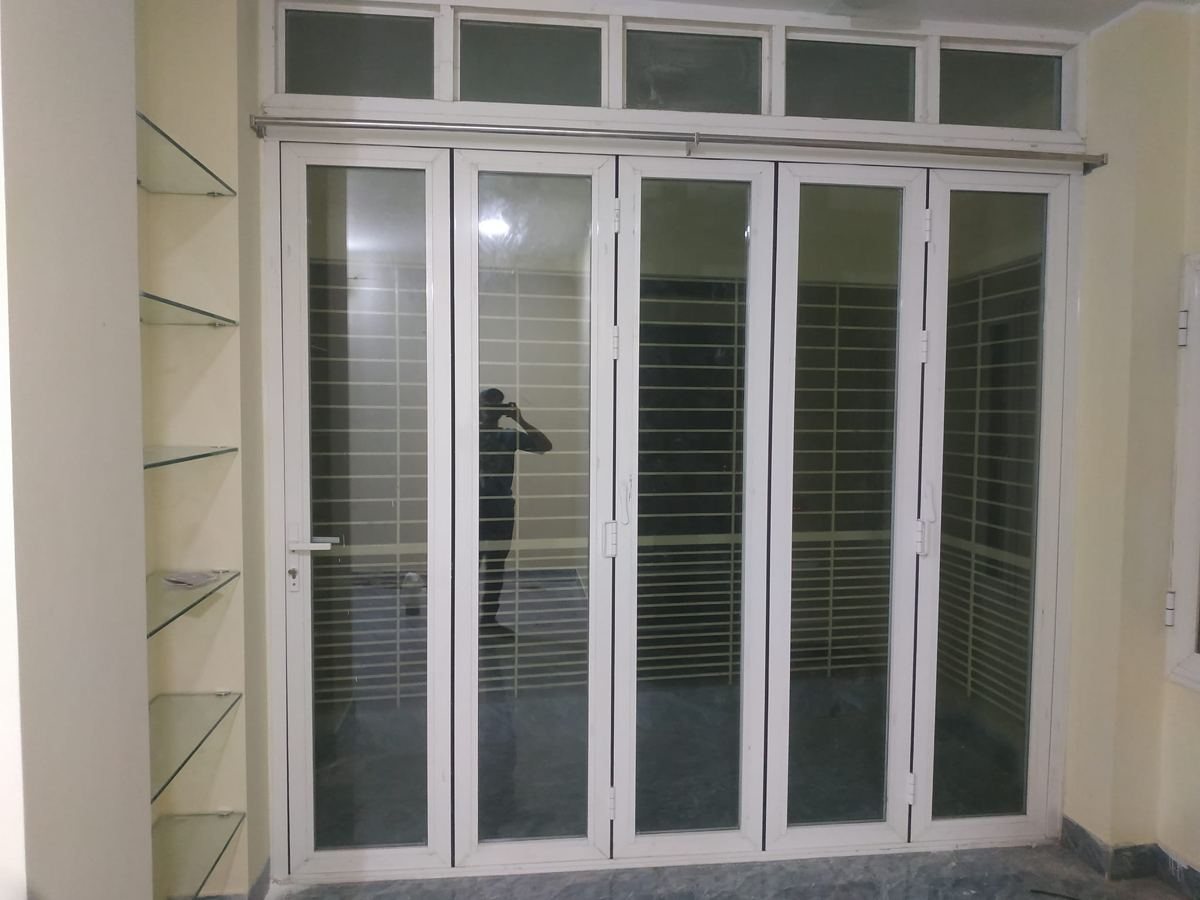

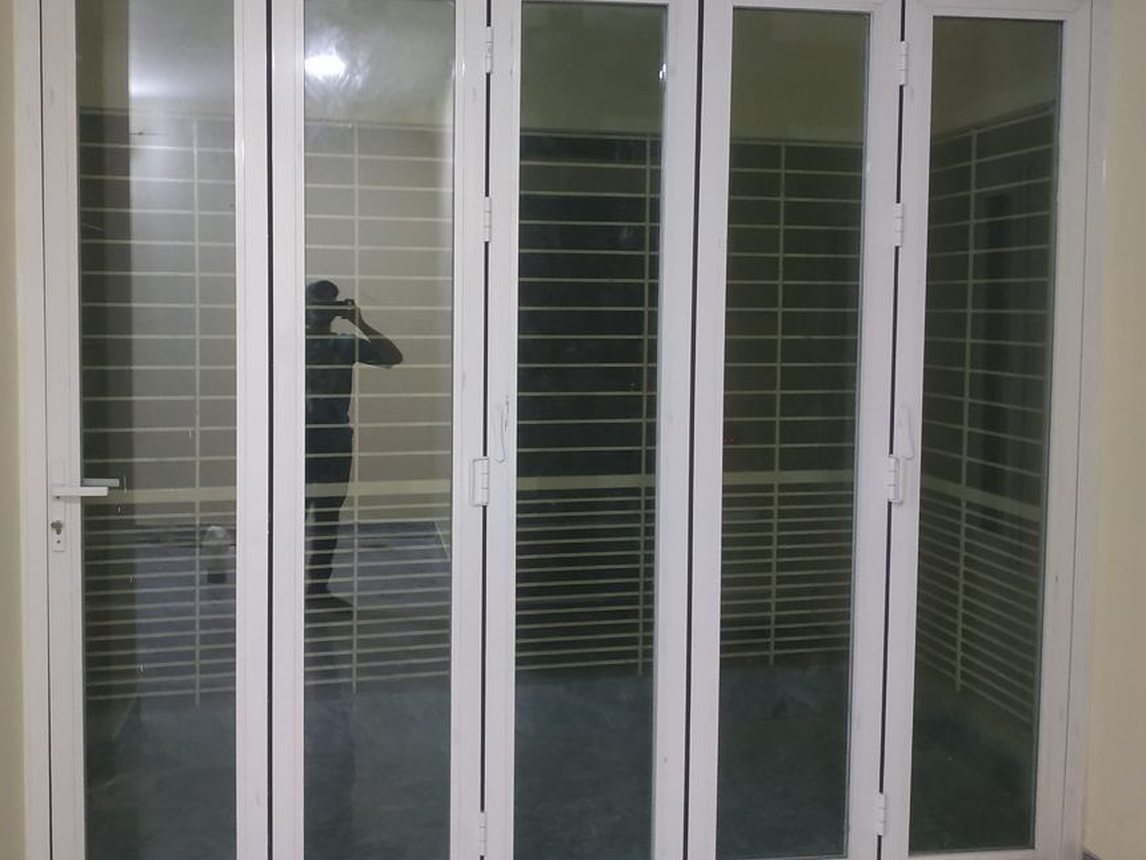

Folding & telescopic doors
Aluminium folding doors for balcony and dining openings; telescopic sliding where the wall has no room for a stack of panels.
Folding door from ৳1,600/sft
Telescopic sliding from ৳2,250

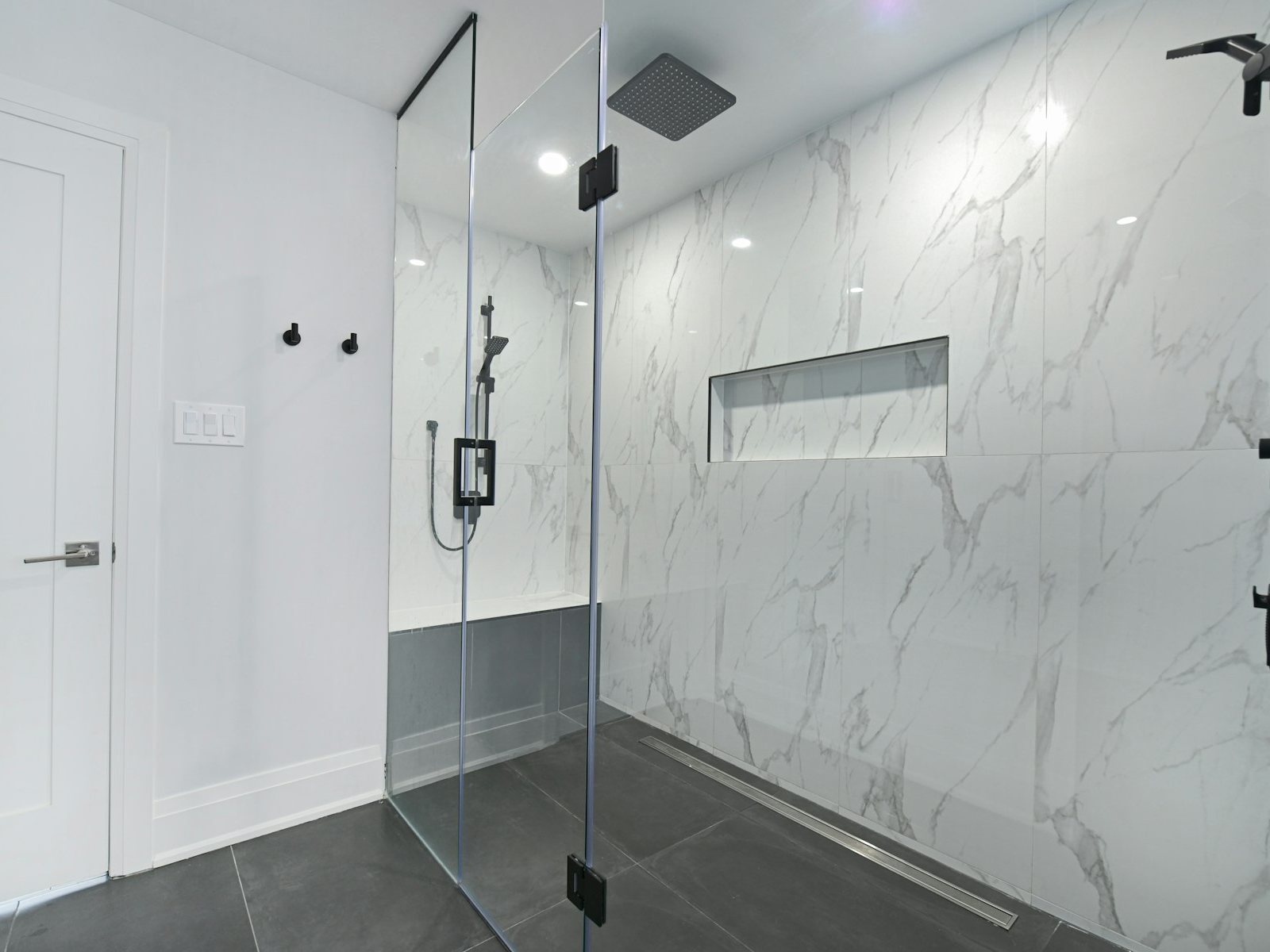

Shower enclosures
10 mm tempered glass on pivot or sliding hardware, fixed panels and screens, cut to the bathroom as built.
from ৳650/sft
10 mm tempered · stainless fittings

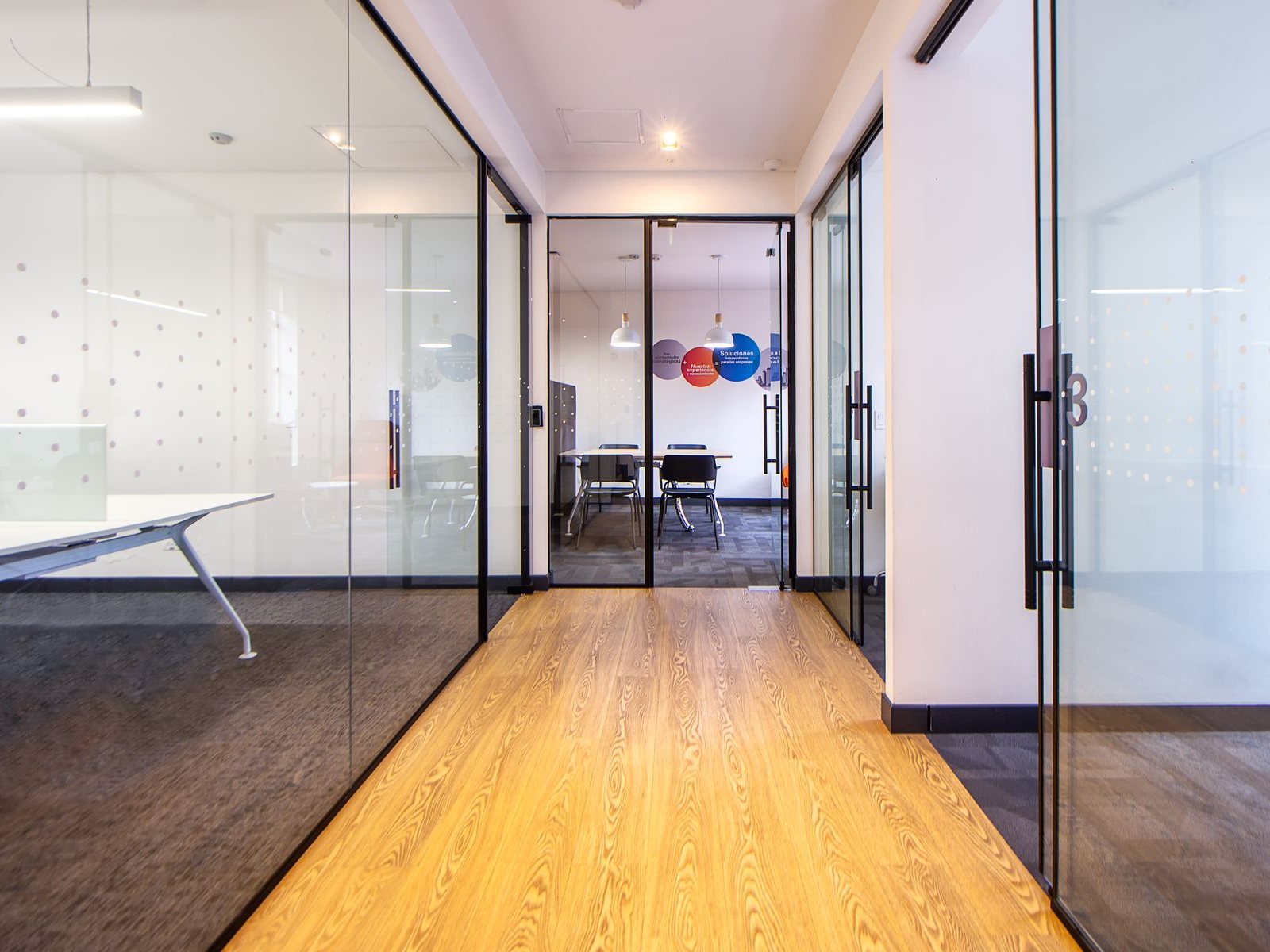

Glass partitions & doors
Frameless tempered doors on floor springs, 10 mm fixed glass in U-channel, and framed office partitions.
Fixed partition from ৳205/sft
Framed with door from ৳365 · U-channel fixed glass from ৳370

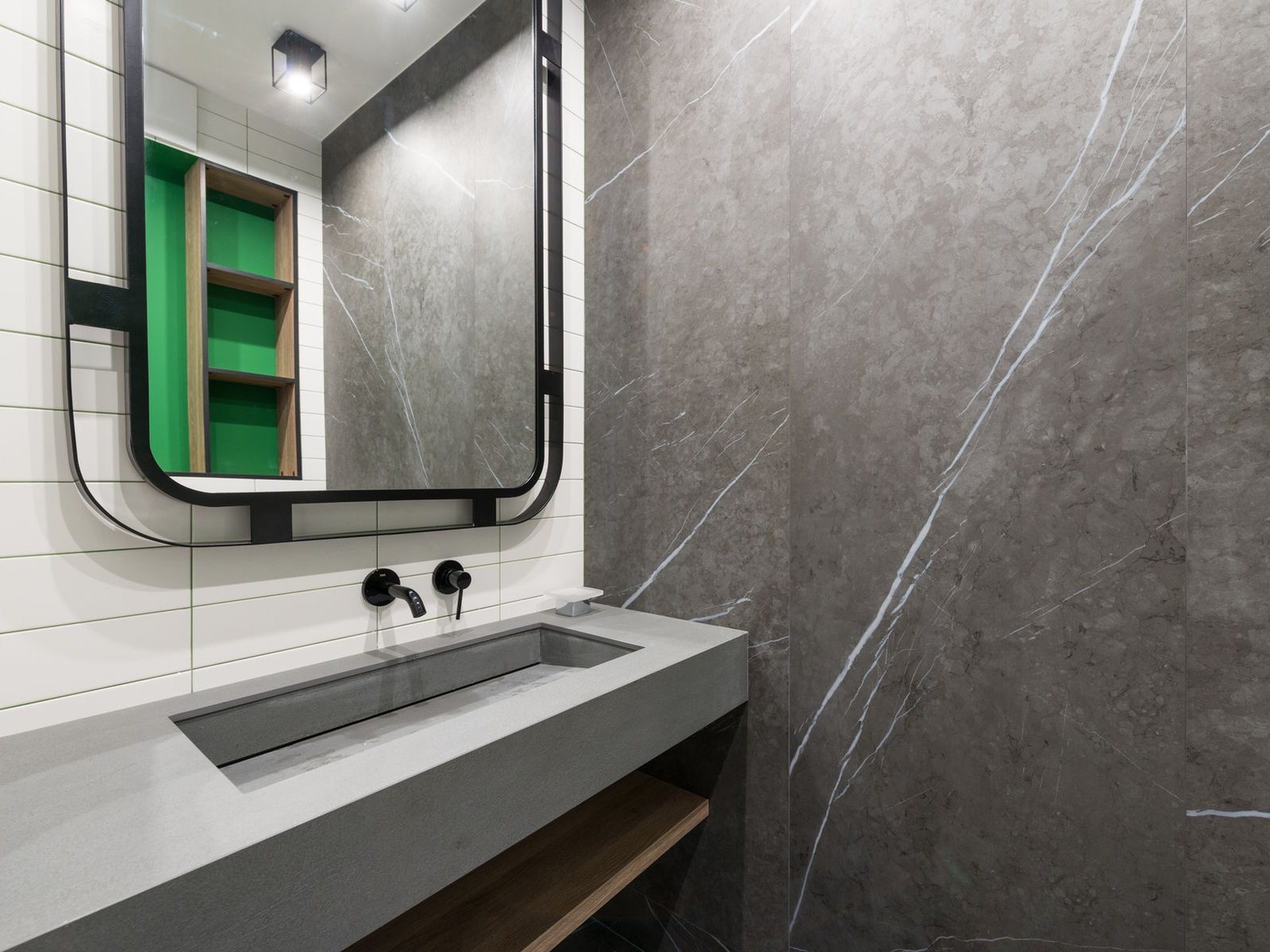

Mirrors & glass fittings
Copper-free Royton mirror with a ten-year coating warranty, sensor LED mirrors, design cutting, shelves and railings.
Royton mirror from ৳550/sft
Sensor LED mirror from ৳700 · glass shelf from ৳380

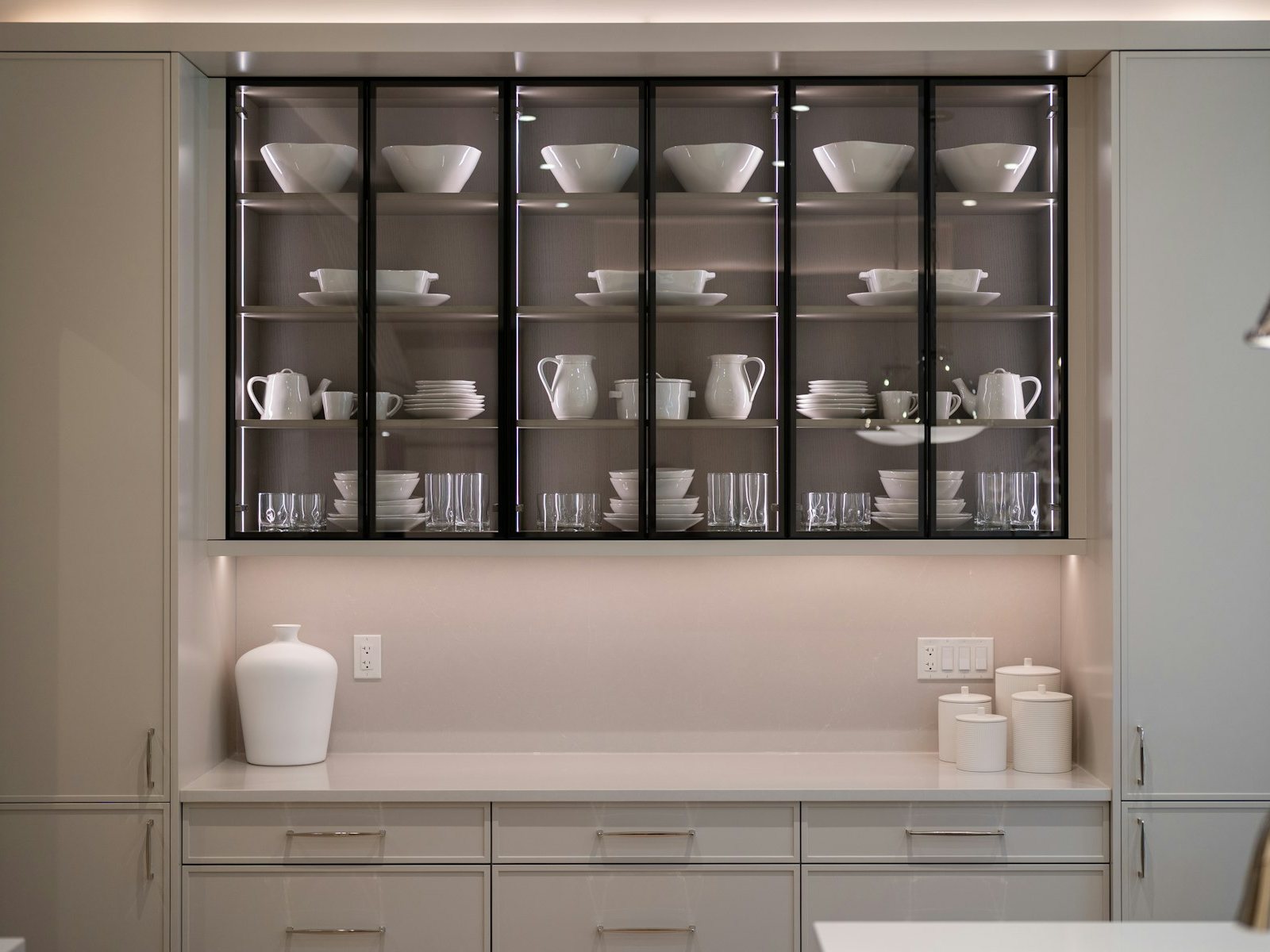

Cabinet profile shutter
Slim aluminium shutter profile for kitchen and wardrobe fronts, with glass or panel infill and soft-close hardware.
from ৳870/sft
Profile · glass · handle · soft-close
Rates from the AFTL Product Line Catalogue 2026. Images tagged Reference image show the system type, not our installation; our own work is under Recent work.
Quotation
Give us the openings. Get a rate.
Pick the system, type the opening size, and send it to us on WhatsApp. You get an indicative figure at once and a written rate per square foot from us — enough to budget with. The itemised quotation follows site measurement.
Lead time10 to 15 days for ordinary jobs; add 7 to 10 days where glass is tempered or double glazed.
Payment50 to 60% advance on confirmation, balance on installation. Larger projects are staged.
WarrantyOne year on installation from the date of handover. Royton mirror carries the maker's ten-year coating warranty.
VATRates exclude VAT; it is added on company bills, with a Mushak-6.3 challan.

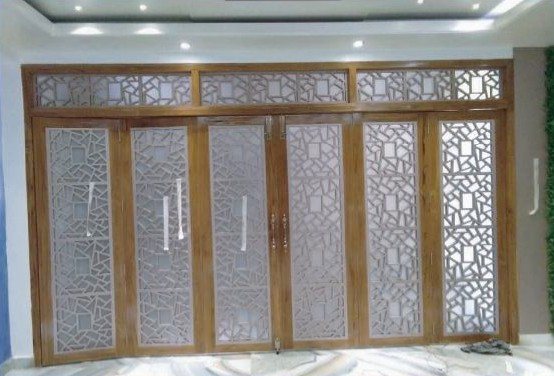

Recent work
As installed.
Photographs of our own installations, as taken, and a register of recent jobs contracted and billed in our own name.
| Project | Location | System | Openings | sft |
|---|---|---|---|---|

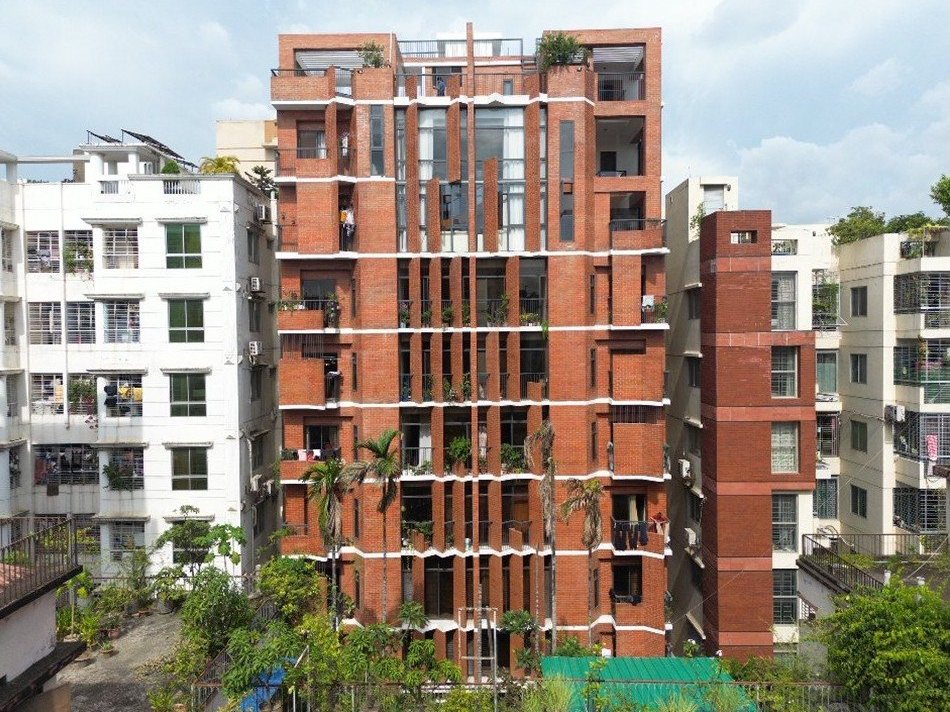

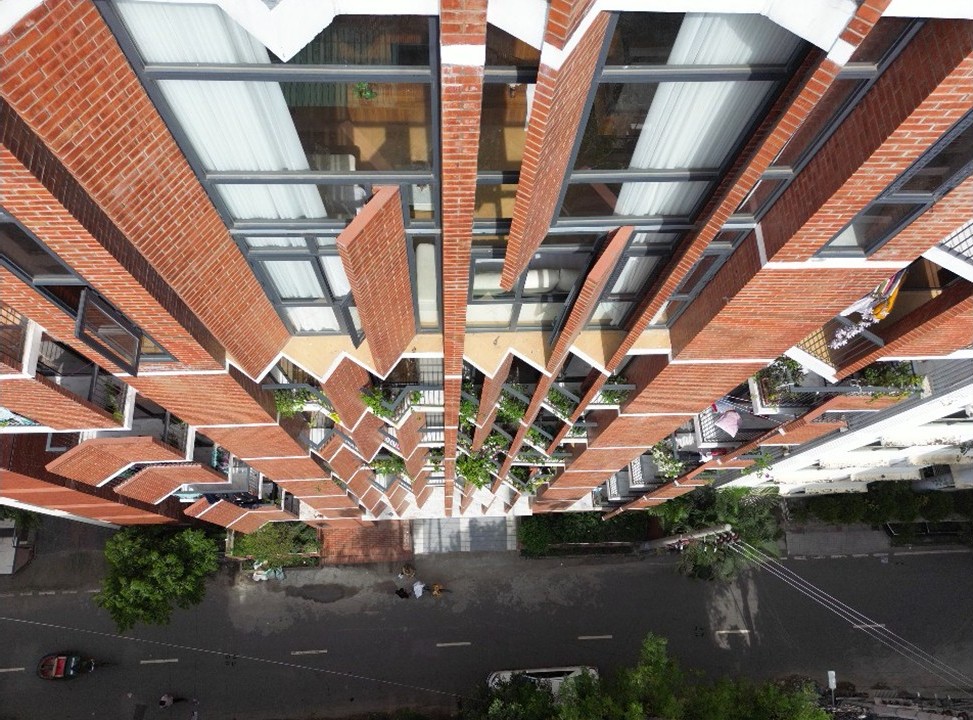

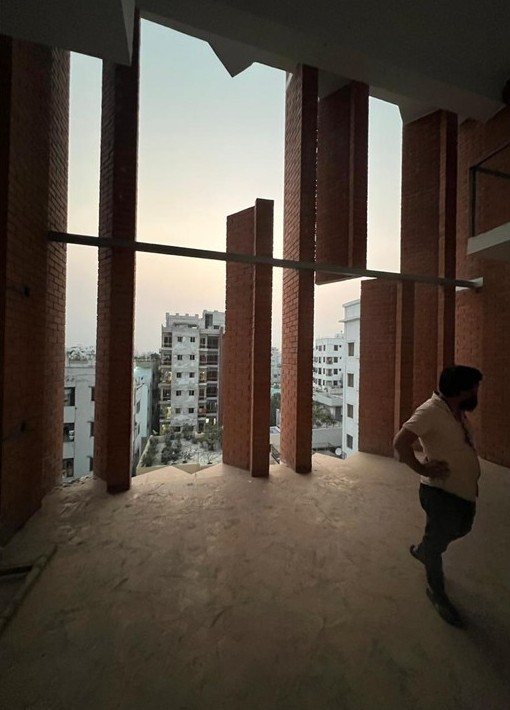

| Residential building, 11 storeys | Mohammadia Housing, Mohammadpur | Aluminium doors and windows, sliding and fixed; glass supplied and fitted | Whole building | |

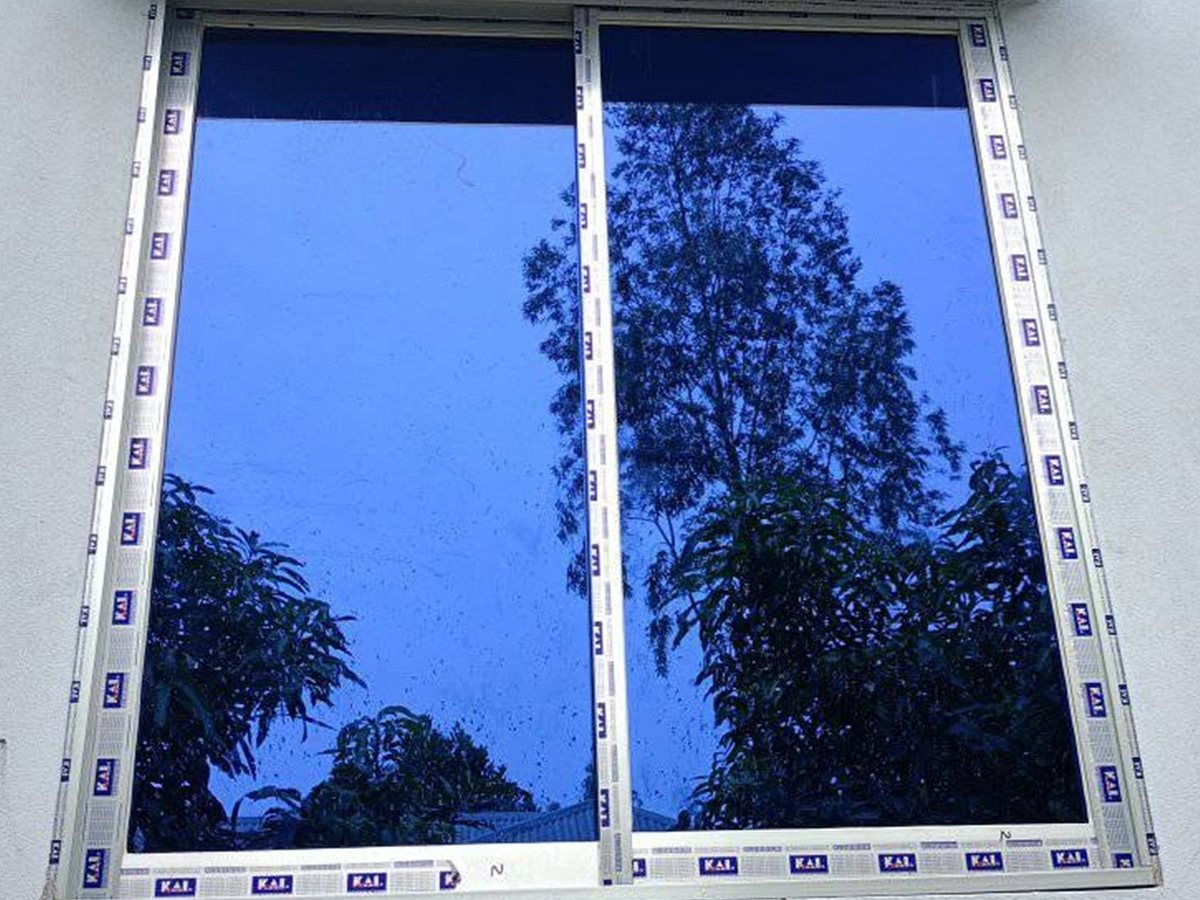

| Residential, 4 flats | Chandrima Udyan, Mohammadpur | 4-inch sliding windows, MAX profile, standard silver | 40 | 895 |
| Residence | Lautola, Chand Udyan | KAI 4-inch sliding windows with net, 5 mm green reflective glass | 12 | 221.5 |
| Wardrobe and closet fronts | Dhaka | Slim-profile aluminium glass shutters, 66 panels | 66 panels | 659 |
| Residence | Iqbal Road, Mohammadpur | Slim-profile cabinet shutters, two bottomless 5-leaf folding doors, shower enclosure | 397 | |
| Residence | Dhanmondi 6/A | Black slim-profile shutters with coffee-light tempered glass | 20 | 134.5 |
| Apartment interior | Matuail | Hanging sliding glass partition 9 × 10 ft, 11 cabinet shutters, ceiling Royton mirror, glass shelves | Handed over | |
| Apartment | Dhanmondi 9/A | 8 mm glass shelves, 5 mm glass pallas, mirror, champagne-profile pallas | 23 pcs | 122.5 |
| Residence | Extended Pallabi | Sensor LED mirrors, glass shelves, mosquito-net frames | 26 pcs | 203 |
Your building on this list next?
Send the openings, or a floor plan, on WhatsApp. Replies are written by hand within the working day.
Site photographs are shown as taken, before finishing trades in some cases.
How we work
We show our working.
Most fabricators quote a number. We hand over the measurement sheet, the cutting list and the nesting plan the number came from, so you can check it before anything is cut.
- 01
Site measurement
Every opening measured as built, height × width, recorded per window.
- 02
Drawing & cutting list
Per-window cutting sizes, bar nesting and glass sizes, with utilisation shown.
- 03
Approval
Sizes, sections, glass and finish confirmed in writing before fabrication starts.
- 04
Fabrication & installation
Cut and assembled in our own workshop, installed and handed over by our fitters.
- 05
Billing on actuals
Final bill against site measurement, with a Mushak-6.3 challan on every taxable supply.
Measurement sheet Specimen · 4-inch sliding window
| Window | H mm | W top | W btm | sft |
|---|---|---|---|---|
| W-01 | 1524 | 1219 | 1219 | 20.00 |
Height first, then width. Width is taken at the top and the bottom of the opening; the larger governs.
Billed area rounds each side up to the next half-foot.
Cutting list W-01 · 1524 × 1219 mm
| Profile | Cut mm | pcs |
|---|---|---|
| O/T outer top | 1206 | 1 |
| O/B outer bottom | 1206 | 1 |
| O/S outer side | 1524 | 2 |
| S/L shutter long | 1496 | 2 |
| I/L interlock | 1496 | 2 |
| S/T shutter top | 528 | 2 |
| S/B shutter bottom | 528 | 2 |
| N(H) net height | 1493 | 2 |
| N(L) net length | 613 | 2 |
| Glass 5 mm, 55-7 × 21-5 in (1421 × 549 mm) | 8.39 sft each | 2 |
16 pieces from 9 dies. Glass is rounded to the suta (⅛ in): down on height, up on width.
Generated by our calculator, the same engine the workshop cuts from. Fabricators can run their own sizes at aftlbd.com/calculator. Homeowners: how to measure an opening.
Who we are
A family trade, now a limited company.
Ahmed Facade Technologies Limited was incorporated in Dhaka in November 2025. Our family has worked in aluminium and glass in Mohammadpur since 1982.
Top Dealer, KAI-Altech Group
Our proprietor has been recognised as a Top Dealer of the KAI-Altech Group — the extruder behind the KAI and Altech profiles we supply.
Direct sourcing from China
Slim-profile cabinet sections, hinges and window systems bought directly from manufacturers in Foshan. Registered buyer at the Canton Fair.

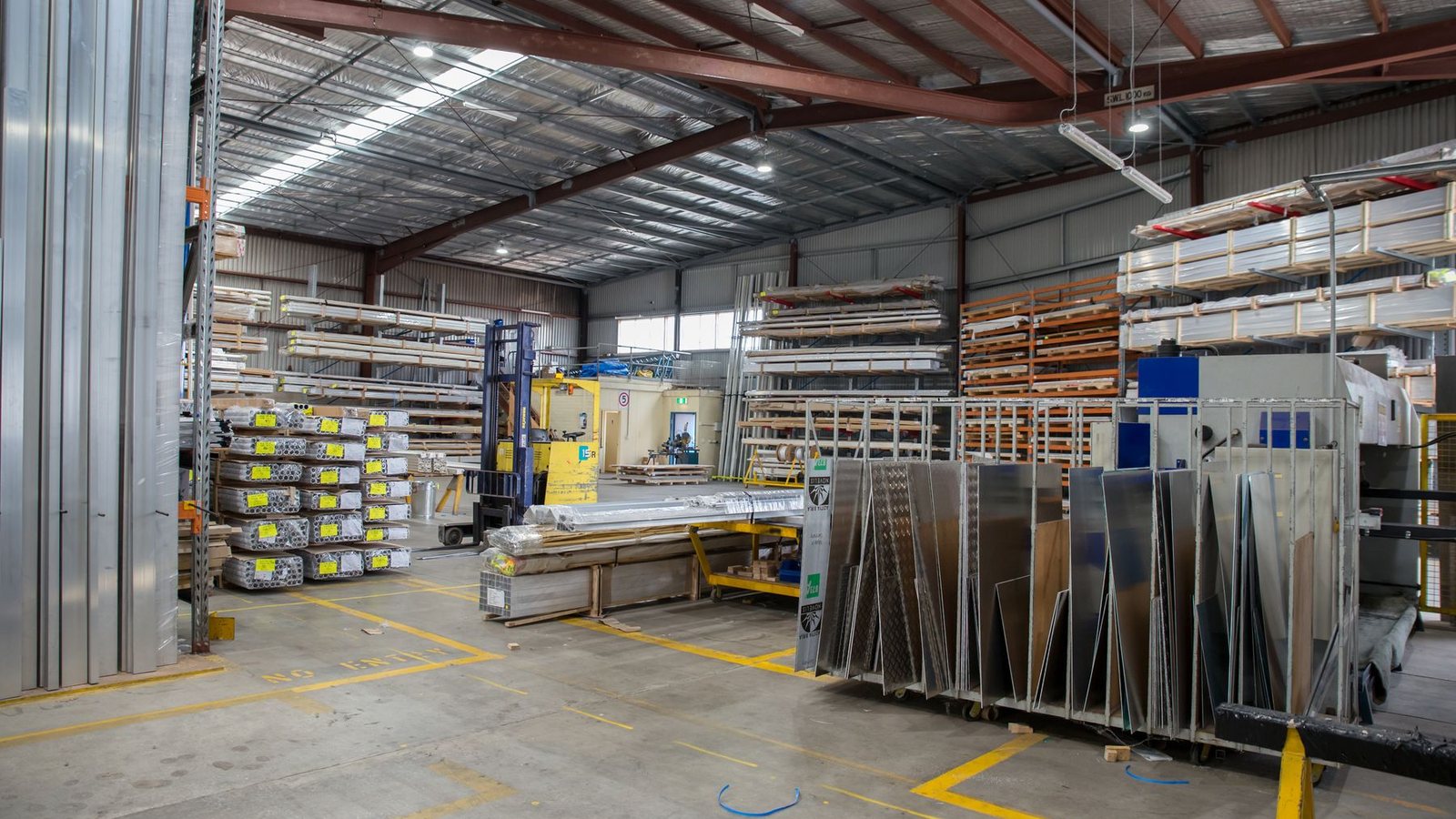

Trade counter
Materials, supplied to the trade.
For fabricators and workshops buying material rather than a finished job. Trade rates on request — call or WhatsApp with your quantities. Brands, gauges, glass stock and how to get the price listWhich glass whereHardware inside the rate

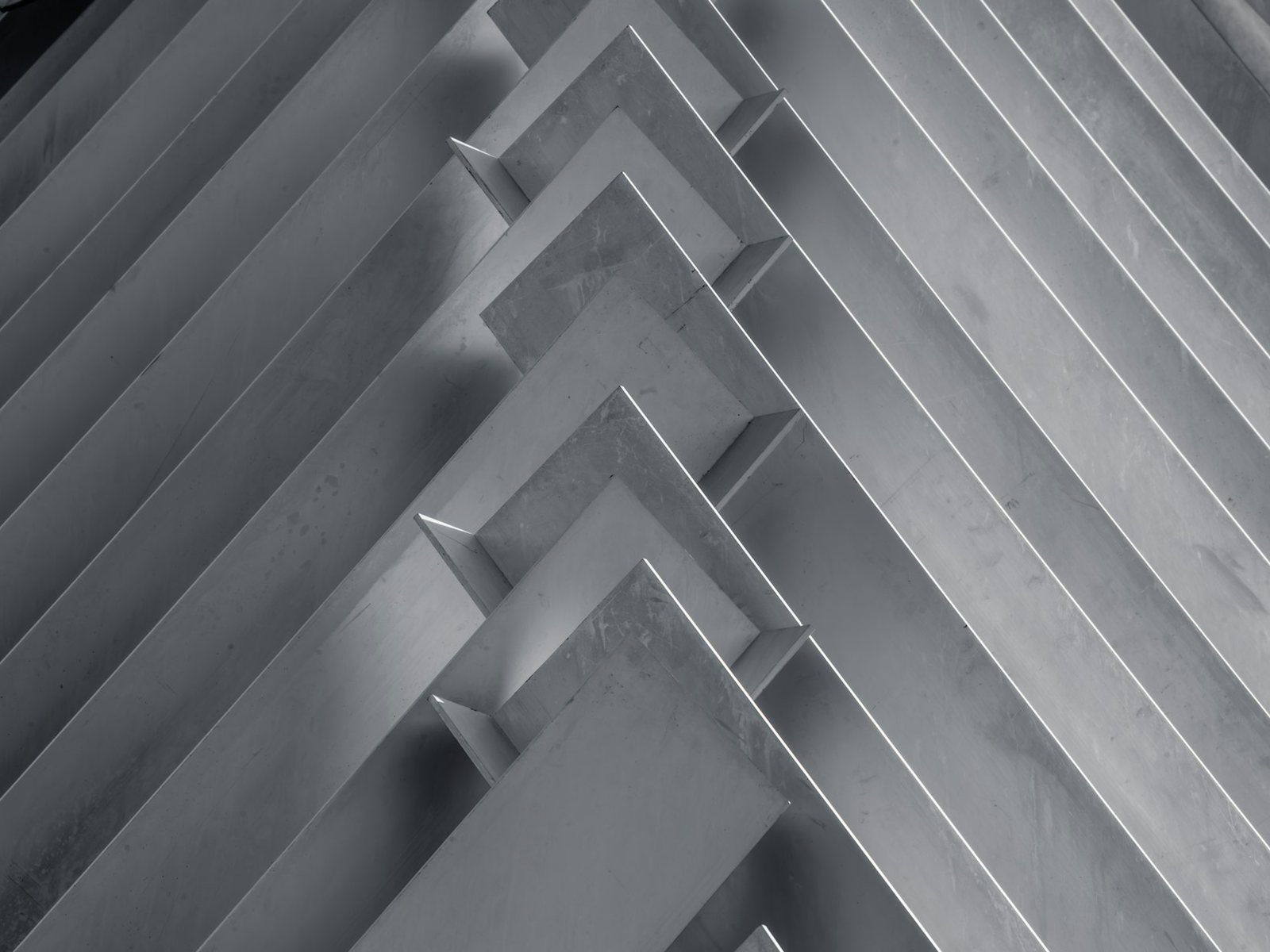

Aluminium profile
KAI, Altech, EDF, Alfa, Max and Panda sections in 1.1, 1.2 and 1.5 mm. Silver, bronze, black, golden, PC white and wood finish.

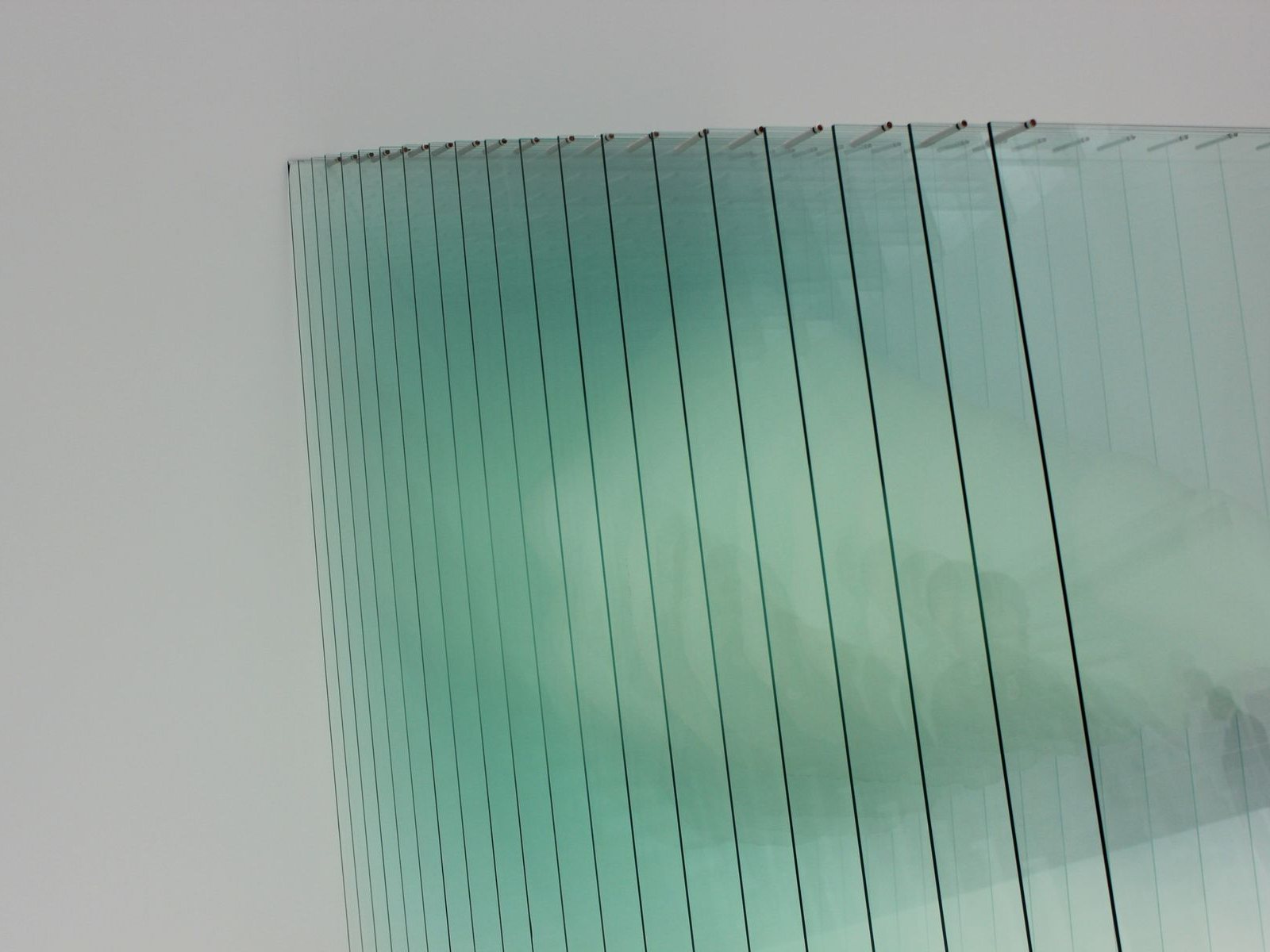

Architectural glass
Clear, tinted, reflective, patterned and tempered, 3.5 to 12 mm, cut to size with edge work — 3.5 to 10 mm from our own stock. Royton and sensor mirror.

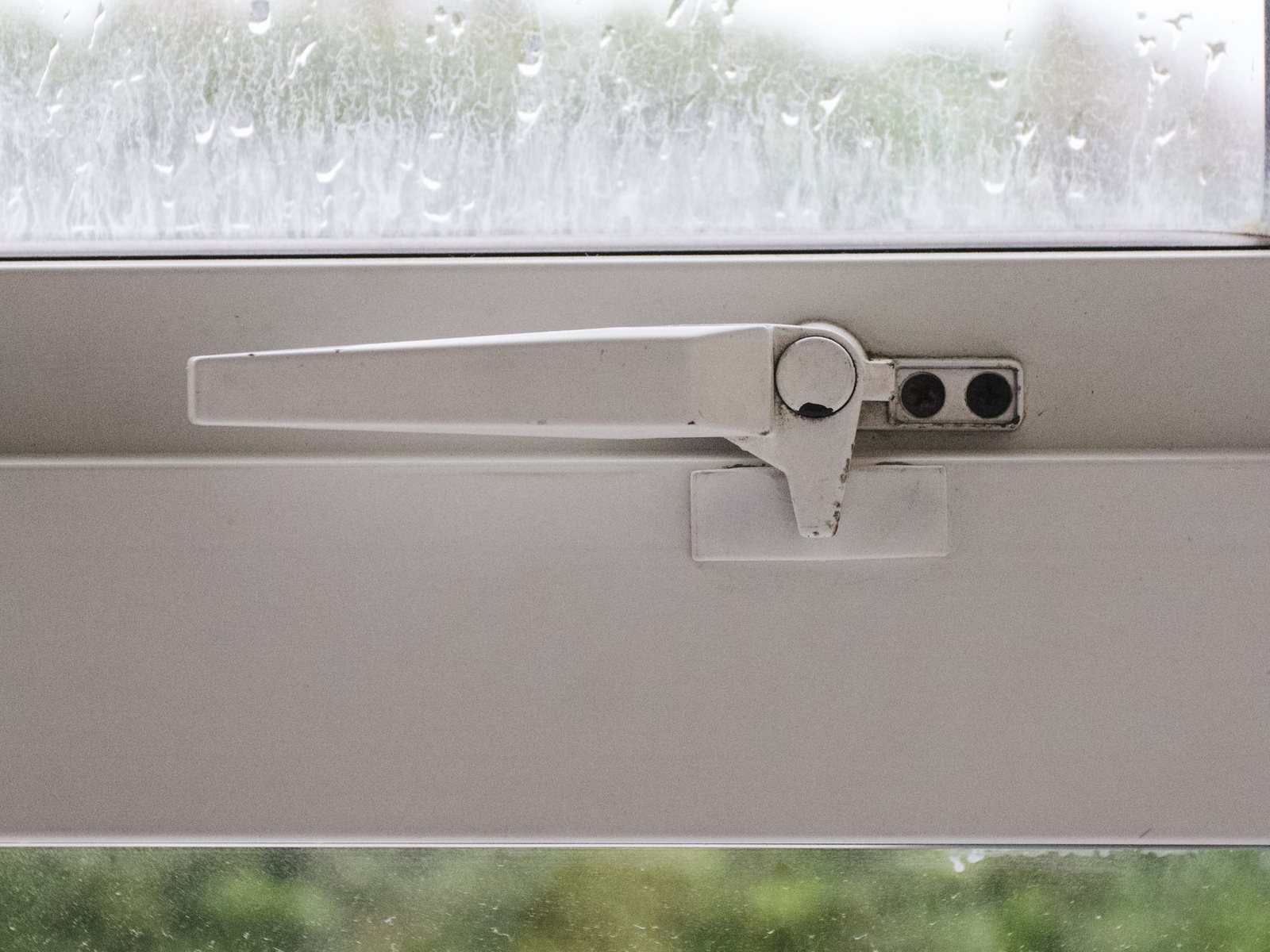

Hardware
Rollers, locks, handles, floor springs, patch fittings, hinges, closers, mohair and rubber — imported direct.
| Profile brands | KAI · Altech · EDF · Alfa · Panda · MaxDealer-sourced; Euro-model and folding systems from EDF. |
|---|---|
| Gauges | 1.1 mm · 1.2 mm · 1.5 mm |
| Finishes | Standard silver · Bronze · Black / SS · Golden · PC white · Woodtech · Charcoal grey |
| Bar lengths | 21 ft · 18 ft 6 in · 16 ftMax in 21 ft and 18 ft 6 in only. Offcuts are stocked and reused across jobs. |
| Glass | 5 · 6 · 8 · 10 · 12 mm — clear, tinted, reflective, frosted, tempered; Royton and sensor mirror Sheets 51 × 84, 72 × 84, 96 × 84 and 102 × 84 in. Cut to size and edge-polished here; tempering and double glazing at an outside factory, add 7 to 10 days. |
| Hardware | Locks, shutter rollers, net rollers and angles, fibre net mesh, mohair, sliding and net rubber, screws, roll plugs, rivets, silicone Also floor springs, patch fittings, hinges and closers for glass doors. Trade quantities, direct import. |
Material calculator
Enter height × width per window. The cutting list is free on the page; the full bar, glass and hardware list comes to you on WhatsApp.
Before you call
The questions we get asked first.
What does the rate per square foot include?
Supply of profile, glass and hardware, fabrication, transport within Dhaka and installation
by our fitters. VAT is excluded and is added on company bills with a Mushak-6.3 challan. Starting rates
are shown on each system above; the itemised quotation follows site measurement.
How is the area measured and billed?
Every opening is measured as built, height first then width, in millimetres. Billing uses the
standard cutting size with each side rounded up to the next half-foot, and the measured area is printed
alongside so you can see both. Left and right flats on a floor are billed alike.
Is the site measurement free?
Yes, anywhere in Dhaka. We do not quote a final figure from a phone measurement; the
measurement sheet becomes page one of the quotation.
Who comes to measure, and when?
Our own fitter measures, at a time agreed on WhatsApp, Saturday to Thursday, 9 am to 7 pm. The measurement sheet from that visit becomes page one of the quotation.
Can you quote from a drawing before a site visit?
Yes. From a floor plan or a window schedule (height × width, quantity) we return a per-opening schedule with the billed sft and the rate per square foot; the final quotation follows site measurement.
How long does a job take?
Ten to fifteen days for ordinary sliding, folding, mirror and shelf work. Add seven to ten days
where glass is tempered or double glazed, because that is processed at an outside factory. Imported
hardware runs to about sixty days; a whole floor of Euro-model windows is scheduled over several months.
What are the payment terms?
Fifty to sixty per cent advance on confirmation, balance on delivery and installation.
Larger projects are staged against milestones, agreed in the quotation.
What warranty do you give?
One year on installation-related defects from the date of handover, and one year on hardware
service. Royton copper-free mirror carries the maker's ten-year coating warranty.
I am a fabricator. Can I buy materials only?
Yes. KAI, Altech, EDF, Alfa, Max and Panda profile by the bar, glass cut to size from our own
stock, and imported hardware. Trade rates on request with quantities, and the
material calculator is free to use.
Will I see the cutting list before you cut?
Yes. The drawing and per-window cutting list are shared for approval before fabrication starts,
and the final bill is against site measurement, not the estimate.
Is 'Thai glass' the same as a Thai aluminium window?
Yes. In Dhaka 'Thai glass' is the everyday name for a sliding window made from Thai-pattern aluminium profile with glass fitted into it. Our rate from ৳650 per sft covers the profile, 5 mm glass, hardware, mosquito net and installation; the Euro model and double glazing are priced separately.
Still have a question? WhatsApp it — বাংলায় লিখলেও চলবে।
Contact
Talk to us about the job.
Phone · WhatsApp
Imran Ahmed, Managing Director, answers the phone.
বাংলায় কথা বলতে চাইলে ফোন বা WhatsApp করুন।
Hours
Saturday – Thursday
9:00 am – 7:00 pm
